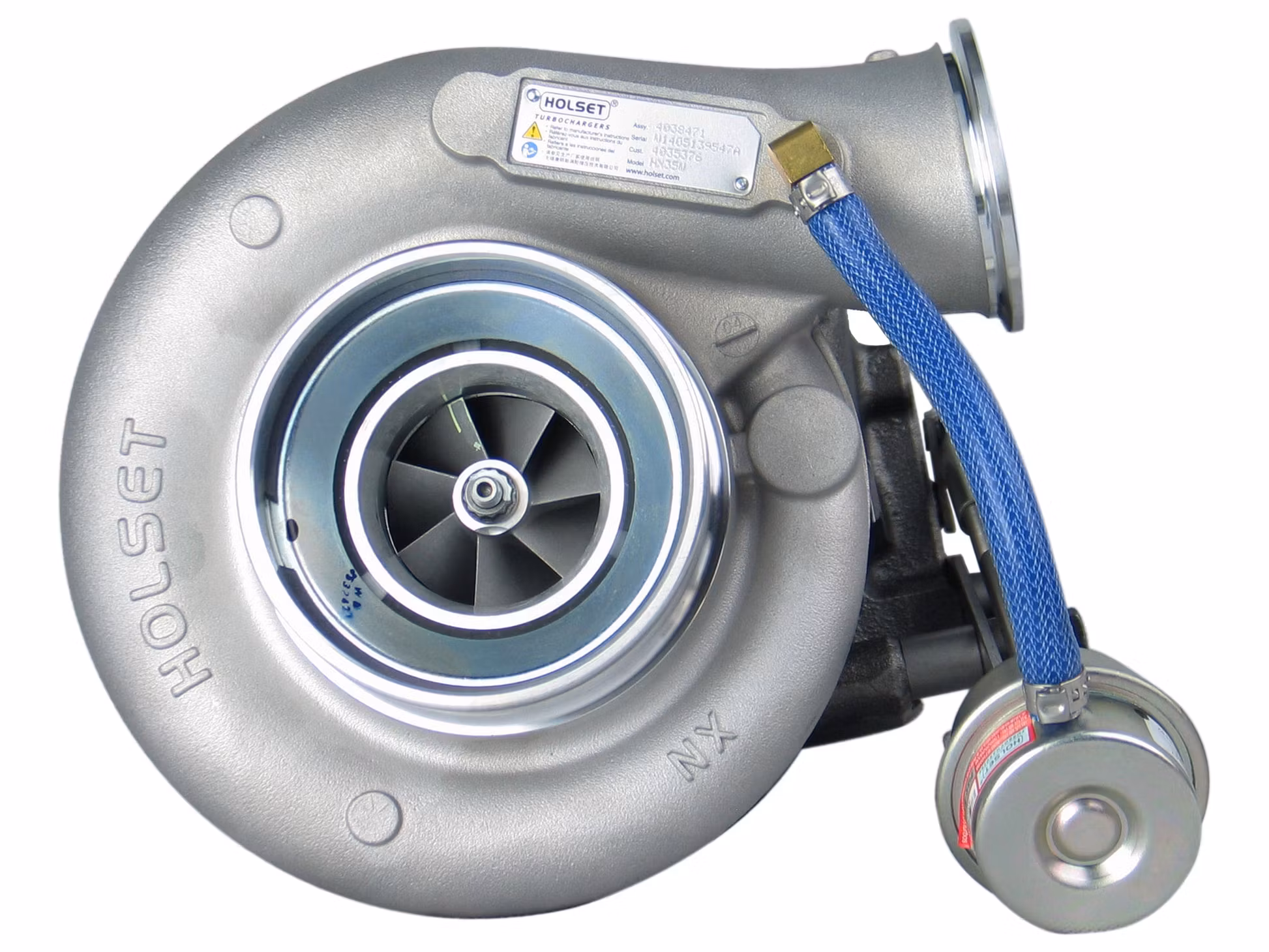

4035375 / 4038471 HX35W Bytesturbo
| Part Number | 4038471 |
| Previous Part Number | 3595159, 3598036, 4035375, 4035376, 403537600, 403537600H, 4035376H |
| OEM | 4089746, 4089746NX, 4089746RX, 4089136 |
| Description | Truck, Cummins Komatsu PC220, PC270 Excavator |
| CHRA | 4027883 (4027250, 4031399, 4027883H)(1000020186) |
| Turbo Model | HX35W, HX35W-E7735L/E12PB11 |
| Manufacturer Part Number | 4035376, 3598036, 3595159 |
| Engine | 6B, 6BTAA, 6BTA5.9-C169, SAA6D102E-2 |
| Displacement | 5.9L, 5900 ccm |
| Fuel | Diesel |
| Engine Manufacturer | Cummins |
| Fuel | Diesel |
| Angle α (compressor housing) | 160° |
| Angle β (turbine housing) | 20° |
| Bearing Housing | 4027882 (3532630, 3591575, 4027249)(79.50 mm)(Oil Cooled)(1900011016B) |
| Turbine Wheel | 3519336 (3595832)(Ind. 70.53 mm, Exd. 60. mm, Trm 11., 12 Blades)(1152301435, 1100030005) |
| Comp. Wheel | 3599651 (3532312)(Ind. 49.96 mm, Exd. 77.97 mm, Trm 9.7, 7+7 Blades, Superback)(1200016661) |
| Seal Plate | 3530923 (1154351300, 1800016009) |
| Heat shield Number | 3519302 (3519304)(1152301340, 2030016031) |
| Repair Kit | 3575169 (1153035750, 5000020021) |
| Gasket (turbine inlet) | 409039-0000 (409039-0001, 210019, 2405022)(Inox Steel)(1900000006) |
| Gasket (oil outlet) | 210060 (311585, 148062, 409267-0003, 409267-0002, 210060-0000, 51914)(Paper) |
| Gasket (Cover plate) | 3535001 |
| Gasket Kit | 3545575 (1900100057) |
| Manufacturer | HOLSET |
